Wiring Diagrams

Welcome to your ultimate guide for battery wiring diagrams!

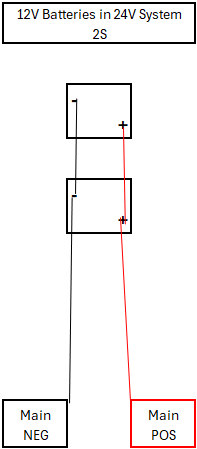

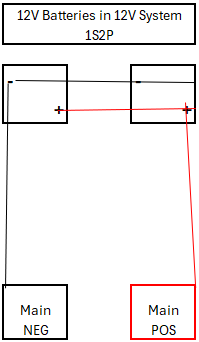

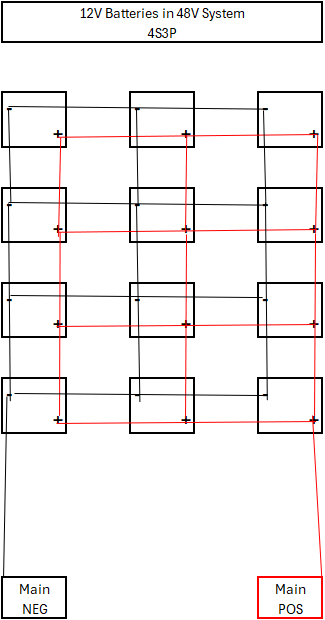

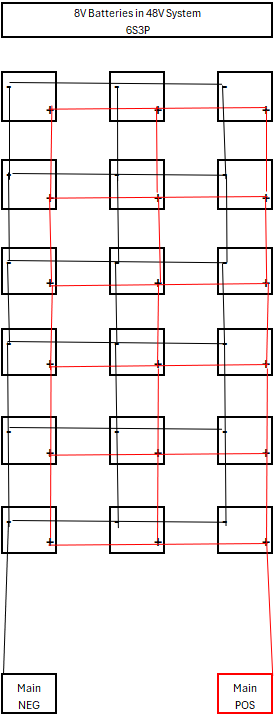

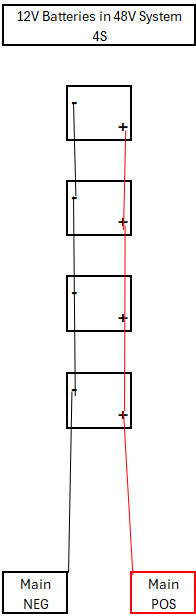

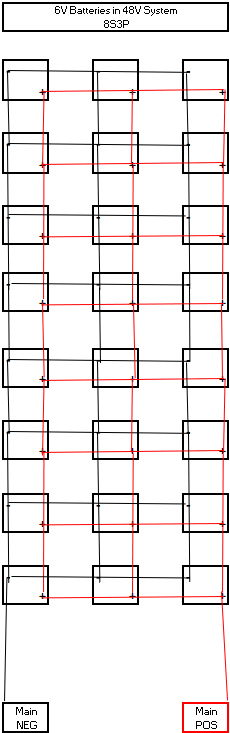

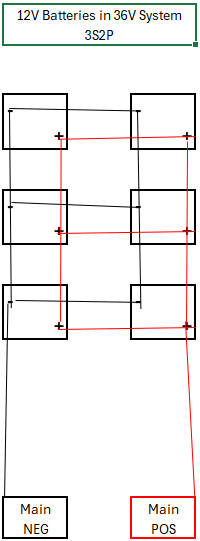

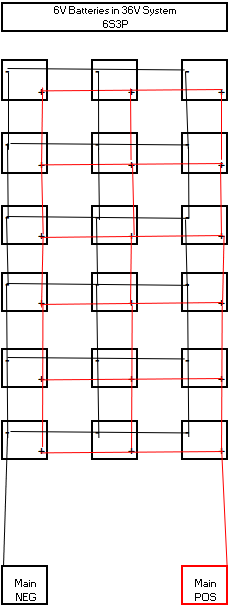

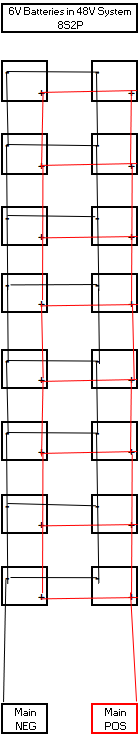

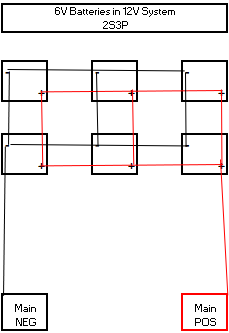

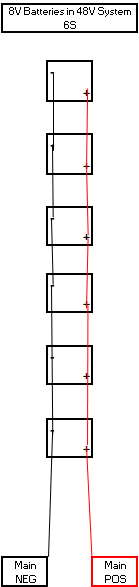

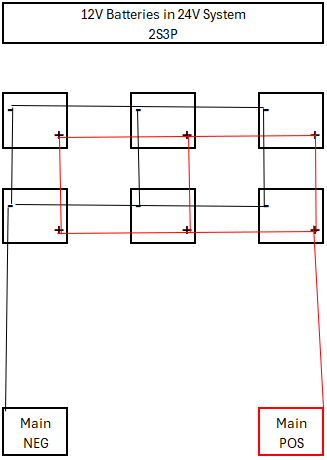

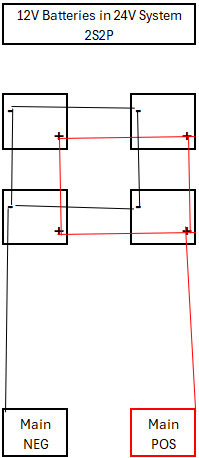

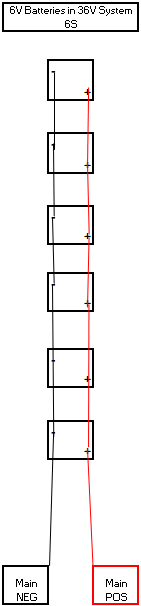

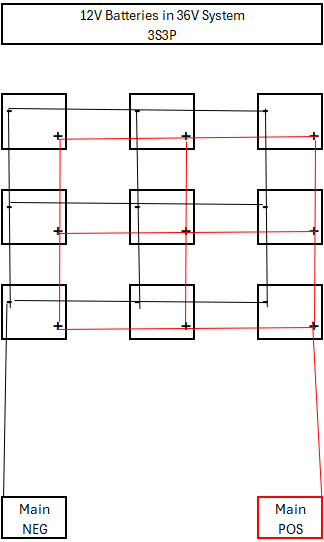

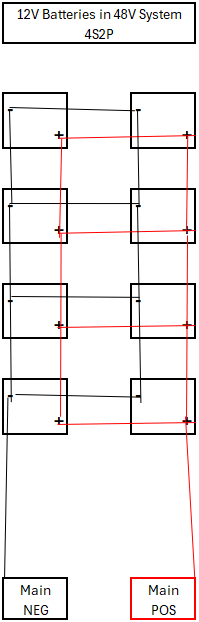

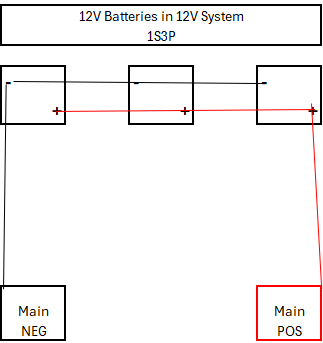

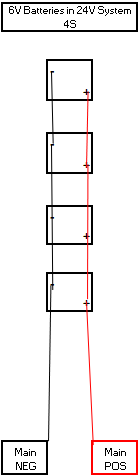

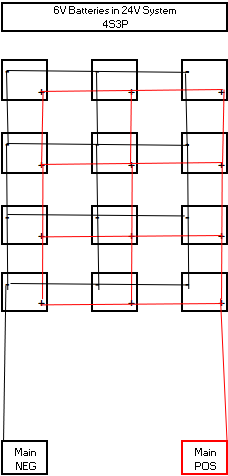

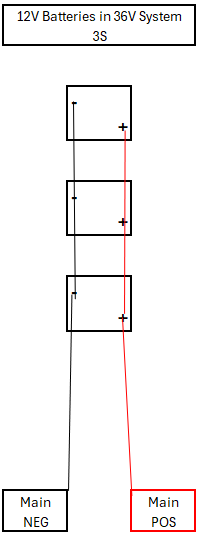

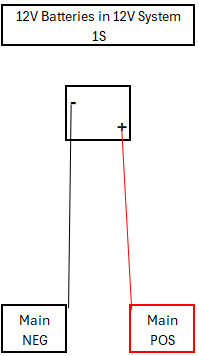

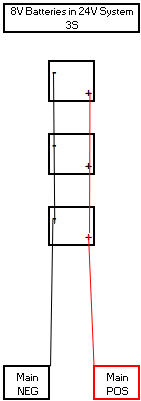

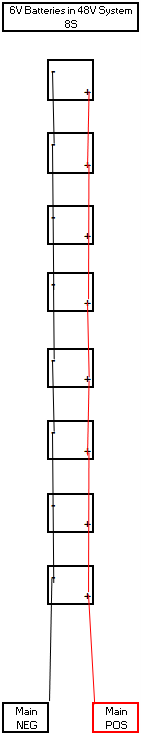

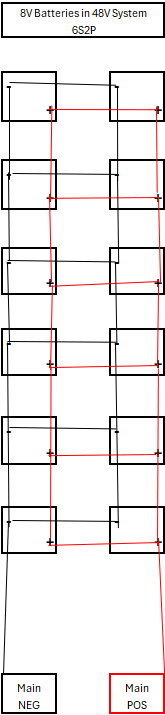

Whether you’re working with 6V, 8V, or 12V lead-acid batteries, this section walks you through exactly how to wire them in series, parallel, or both — building systems from 12V all the way up to 48V. From simple single-string setups to more advanced multi-string configurations (up to 3 in parallel), we’ve got clear visuals and step-by-step explanations to help you get it right the first time.

No guesswork. No confusion. Just clean, safe, and efficient battery wiring.

Have questions? Ask The Battery Nerd!
Not sure if you need a fuse? (You do.)
Wondering how to hook up your inverter? We’ve got you.
